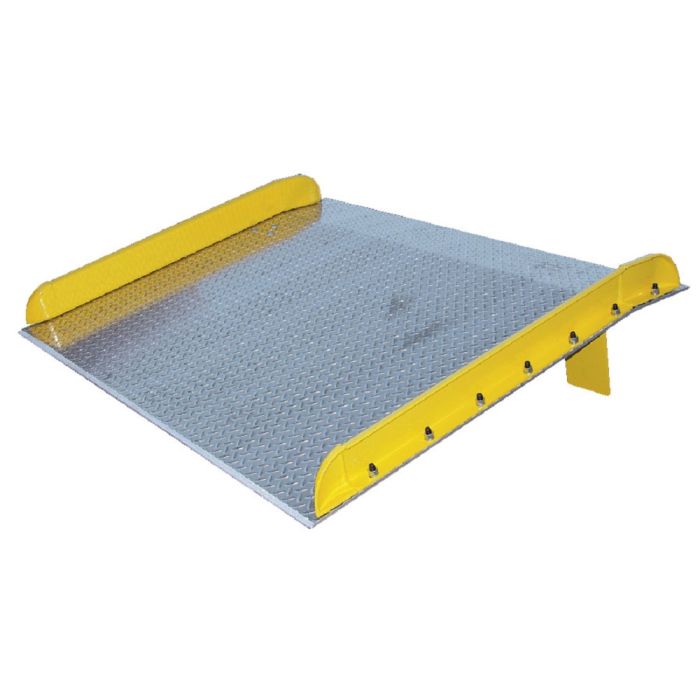

Aluminum Dockboards w/ Steel Curbs - 60" x 36"
Status: Available
SKU:
TAS-10-6036
$815.95
Beveled Edges for Smooth Entry & Exit treadplate design ensures positive traction bend is 11° and 9" from Beveled Edge Legs are 12" from Beveled Edg.
> WxL 60" x 36"
> Capacity 10,000 lbs
> Height Diff. 5"
> Net Weight 103 lbs
Write Your Own Review
This dockboard is designed for portability and safety. Deck is made of tough high strength aluminum treadplate. Safety curbs are painted yellow and are constructed of structural steel with cast tapered ends. Steel legs are bolted for increased durability. Canted locking legs for easier fork truck portability. Manufactured in compliance of OSHA. Beveled Edges for Smooth Entry & Exit treadplate design ensures positive traction bend is 11° and 9" from Beveled Edge Legs are 12" from Beveled Edg.
> WxL 60" x 36"
> Capacity 10,000 lbs
> Height Diff. 5"
> Net Weight 103 lbs
| Weight | 112.0 |
|---|---|
| Width (in.) | 60 |
| Length (in.) | 36 |
| Height (in.) | 11.5625 |
| Uniform Capacity (lb.) | 10000 |
| Height Difference at 11 degree/19 percent (in.) | 5 |
| Location of legs from beveled edge (in.) | 11 |
| Bend Degree | 11 |
| Bend Distance from Beveled Edge (in.) | 8-13/16 |
| Usable Width (in.) | 56 |
| Usable Length (in.) | 36 |
| Plate Thickness (in.) | 5/16 |
| Curb Height (in.) | 3-9/16 |
| OSHA | 1910.30(a) |
| ANSI | MH 30.2 |
