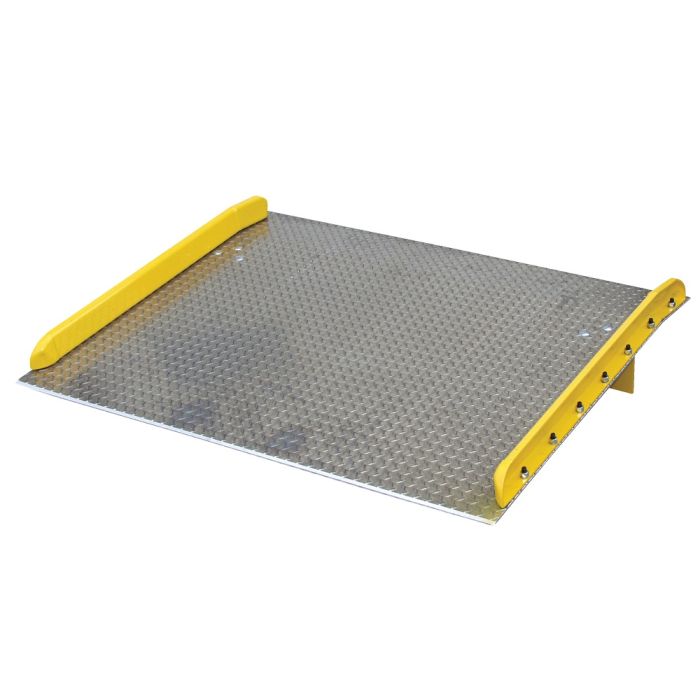

Aluminum Dockboards with Steel Curbs - 72" x 48" - 20,000 capacity
> Beveled Edges for Smooth Entry & Exit
> Treadplate Design ensures positive traction bend is 11° and 9" from Beveled Edge legs are 12" from Beveled Edge
> (WxL) 72" x 48"
> Capacity 20,000lb
> Height Diff. 7"
> Net Weight 210 lbs
This dockboard is designed for portability and safety. Deck is made of tough high strength aluminum treadplate. Safety curbs are painted yellow and are constructed of structural steel with cast tapered ends. Steel legs are bolted for increased durability. Canted locking legs for easier fork truck portability. Manufactured in compliance of OSHA.
> Beveled Edges for Smooth Entry & Exit
> Treadplate Design ensures positive traction bend is 11° and 9" from Beveled Edge legs are 12" from Beveled Edge
> (WxL) 72" x 48"
> Capacity 20,000lb
> Height Diff. 7"
> Net Weight 210 lbs
| Weight | 202.0 |
|---|---|
| Width (in.) | 72 |
| Length (in.) | 48 |
| Height (in.) | 13.6875 |
| Uniform Capacity (lb.) | 20000 |
| Height Difference at 11 degree/19 percent (in.) | 7 |
| Location of legs from beveled edge (in.) | 11 |
| Bend Degree | 11 |
| Bend Distance from Beveled Edge (in.) | 8-3/4 |
| Usable Width (in.) | 68-1/4 |
| Usable Length (in.) | 48 |
| Plate Thickness (in.) | 1/2 |
| Curb Height (in.) | 4-3/4 |
| OSHA | 1910.30(a) |
| ANSI | MH 30.2 |
