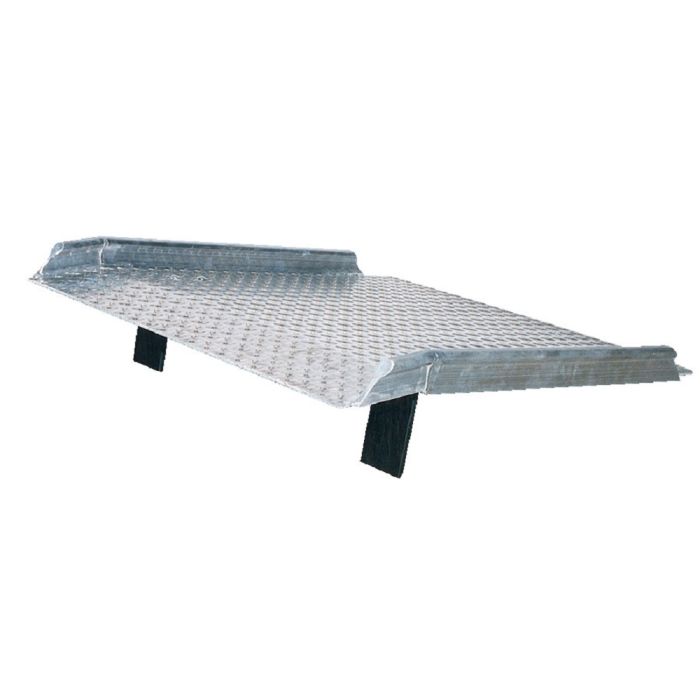

Vestil ALUMINUM HAND TRUCK DOCKBOARD 0.8K 30.25X35.87
< Equipped with bolted locking legs.
< 800 pound capacity.
< Designed for use with two wheel hand trucks.
< 3/16" plate thickness.
< Manufactured in compliance with OSHA.
< (W x L) 30" x 36"
< Height Diff. 5"
These dockboards are lightweight and can be carried and positioned by one person. Aluminum Hand Truck Dockboards provide a safe and convenient bridge between dock and truck. The Aluminum Hand Truck Dockboards have a diamond tread surface and beveled edges provide safe and smooth entry and exit. The bend is designed to keep ramp edges flush with dock surface and truck floor. Full length aluminum curbs provide hand holds and reduce chance of roll off.
< Equipped with bolted locking legs.
< 800 pound capacity.
< Designed for use with two wheel hand trucks.
< 3/16" plate thickness.
< Manufactured in compliance with OSHA.
< (W x L) 30" x 36"
< Height Diff. 5"
| Weight | 29.0 |
|---|---|
| Width (in.) | 31.25 |
| Length (in.) | 35.875 |
| Height (in.) | 7.1875 |
| Uniform Capacity (lb.) | 800 |
| Bend or Crown (degrees) | 12 |
| Distance Between Bend or Crown from dockplate edge (in.) | 6 |
| Height Differential (in.) | 5 |
| Plate Thickness (in.) | 3/16 |
| Usable Width (in.) | 28 |
| Usable Length (in.) | 35-7/8 |
| OSHA | 1910.30 (a) |
| ANSI | MH 30.2 |
