Vestil DRUM GRIPPER SINGLE ADJUSTABLE 800 LB
Status: Available
SKU:
DGS-A
$493.96
- Capacity (lbs.) - 800
- Acceptable Drum Size - 30 & 55 Gallon
- Overall Size (W x D x H) - 26" x 35" x 8"
- Fork Pocket Centers - 13.5"
- Fork Pocket Size (W x H) - 7.25" 2.5"
- Net Weight (lbs) - 146
Write Your Own Review

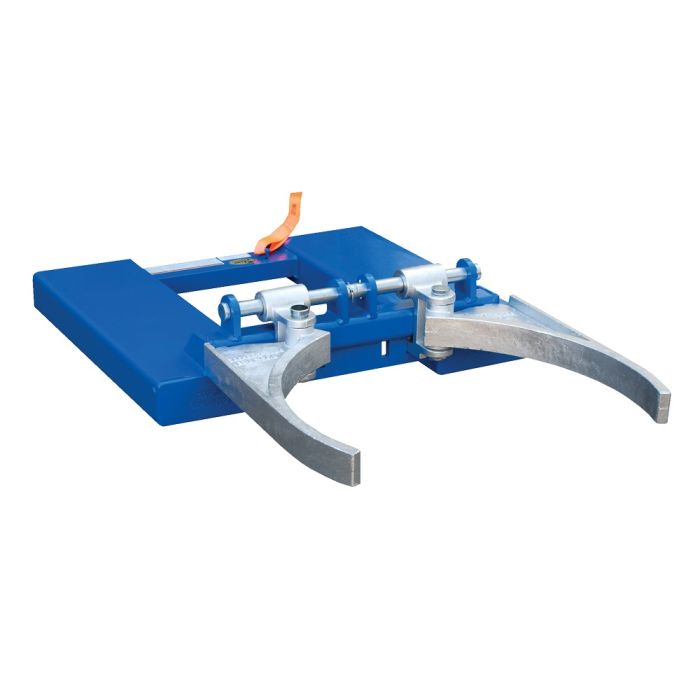

The Drum Gripper makes it easy to pick up one or two steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage. Model DGS-A feature adjustable-width arms for use with both 30-gallon and 55-gallon steel drums. Welded steel construction. Powder coat finish
- Capacity (lbs.) - 800
- Acceptable Drum Size - 30 & 55 Gallon
- Overall Size (W x D x H) - 27 3/4" x 35 1/8" x 7 1/5"
- Fork Pocket Centers - 19 3/4"
- Fork Pocket Size (W x H) - 7 1/2" x 2 1/2"
- Net Weight (lbs) - 146
| Additional Spec | Fork Pocket Size (W x H) - 7 1/2" x 2 1/2" |
|---|---|
| Weight | 164.0 |
| Width (in.) | 27.75 |
| Length (in.) | 35 |
| Height (in.) | 7.5 |
| Uniform Capacity (lb.) | 800 |
| Accepts | (1) 30 or 55-gallon steel drums |
| Fork Pocket on Center (in.) | 19-3/4 |
| Fork Pocket Width (in.) | 7-5/8 |
| Usable Fork Pocket Height (in.) | 1-7/8 |
| Fork Pocket Length (in.) | 15-7/8 |
| Type | Adjustable Fold-up |
| Minimum Drum Spacing Each Side (in.) | 1 |
