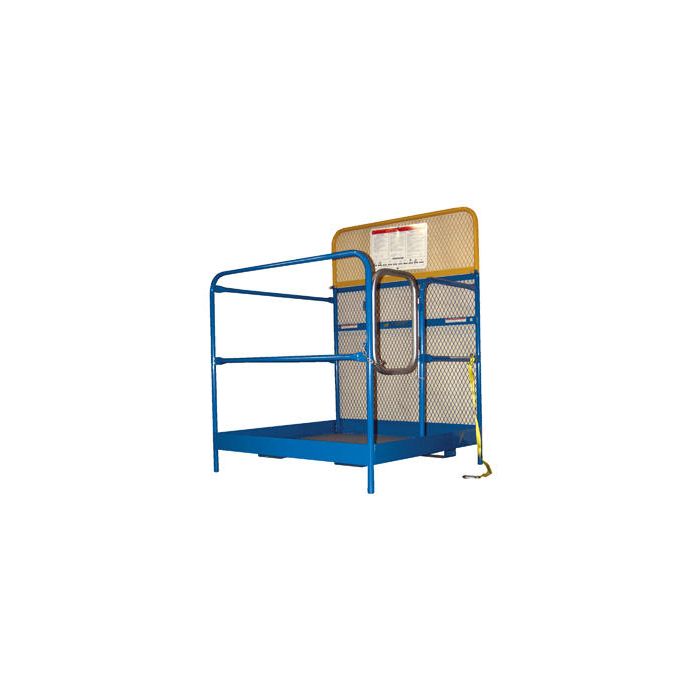

Vestil STEEL WORK PLATFORM 36 X 48 IN
Platform Size: 36" x 48"
Fork Pocket Center: 15"
Usable fork pockets: Rear: 7 3/4"W x 3 3/8"H Front: 7 3/4"W x 1 7/8"H
Capacity: 1,000 lbs.
Expanded Metal Back: 60"
Net. Wt. : 165 lbs.
Convenient fork truck work platforms quickly and safely transport maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and chaining platform to fork truck. Tine lock must be engaged to secure platform to forks. 42" high handrail with 21" high mid-rail on three sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications). Includes checker floor plate platform and 36" long strap with hook to attach platform to fork truck. Welded steel construction. Powder coat blue finish.
Platform Size: 36" x 48"
Fork Pocket Center: 15"
Usable fork pockets: Rear: 7 3/4"W x 3 3/8"H Front: 7 3/4"W x 1 7/8"H
Capacity: 1,000 lbs.
Expanded Metal Back: 60"
Net. Wt. : 165 lbs.
| Additional Spec | Expanded Metal Back: 60" |
|---|---|
| Weight | 194.0 |
| Width (in.) | 36 3/16 |
| Length (in.) | 51 |
| Height (in.) | 65 5/8 |
| Uniform Capacity (lb.) | 1,000 |
| Fork Pocket Center (in.) | 16 |
| Front and Rear Fork Pocket Width (in.) | 7-3/4 |
| Rear Fork Pocket Height (in.) | 3-7/8 |
| Front Fork Pocket Height (in.) | 1-7/8 |
| Strap Length (in.) | 36 |
| Top Rail Height (in.) | 42 |
| Mid Rail Height (in.) | 21 |
| Entry Style | Single Side Door |
| Toeboard Height (in.) | 4-1/8 |
| Handrail Design | Fixed |
| Door Width (in.) | 16 |
| High Back Height (in.) | 60 |
