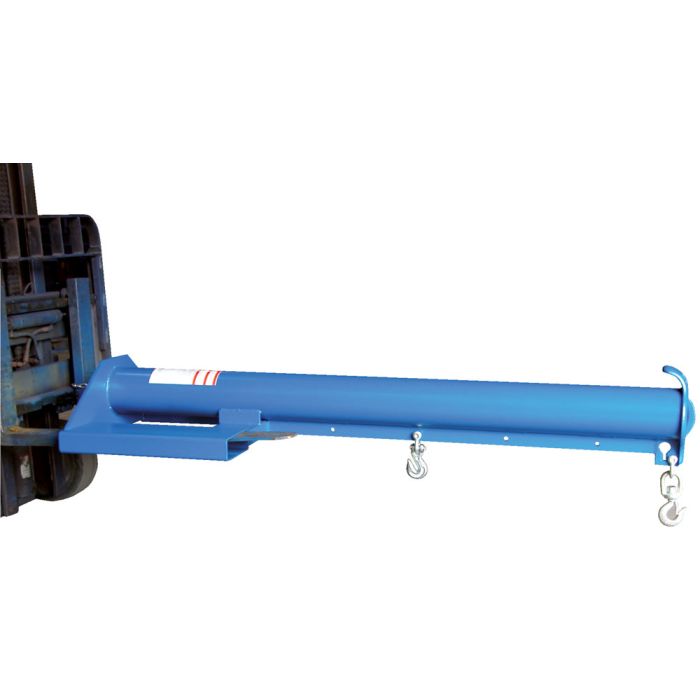

Lift Master Booms - Non-Telescoping Economy Boom - 6000 Lb Cap.
Status: Available
SKU:
LM-EBNT-6-24
$1,337.87
- Overall Height - 23 1/2"
- Capacity 6,000 lbs.
- Usable fork pockets are 7 1/4"W x 2 1/4"H
- Net Weight- 503 lbs.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
Write Your Own Review
Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.
- Overall Height - 23 1/2"
- Capacity 6,000 lbs.
- Usable fork pockets are 7 1/4"W x 2 1/4"H
- Net Weight- 503 lbs.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
| Additional Spec | Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers |
|---|---|
| Weight | 291.0 |
| Width (in.) | 32 |
| Length (in.) | 81.625 |
| Height (in.) | 13.3125 |
| Uniform Capacity (lb.) | 6,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/4 x 2-1/4 |
| Restraint Length (in.) | 36 |
| Boom Style | Non-Telescoping |
| Minimum/Maximum Hook Point (in.) | 36/79 |
| Single-Hook Capacity at 36" (lb.) | 6000 |
| Single-Hook Capacity at 48" (lb.) | 5000 |
| Single-Hook Capacity at 60" (lb.) | 4500 |
| Single-Hook Capacity at 72" (lb.) | 4000 |
| Single-Hook Capacity at 79" (lb.) | 3500 |
| Boom Type | Economy Boom |
| OSHA | 1910.178(a)(4) |
