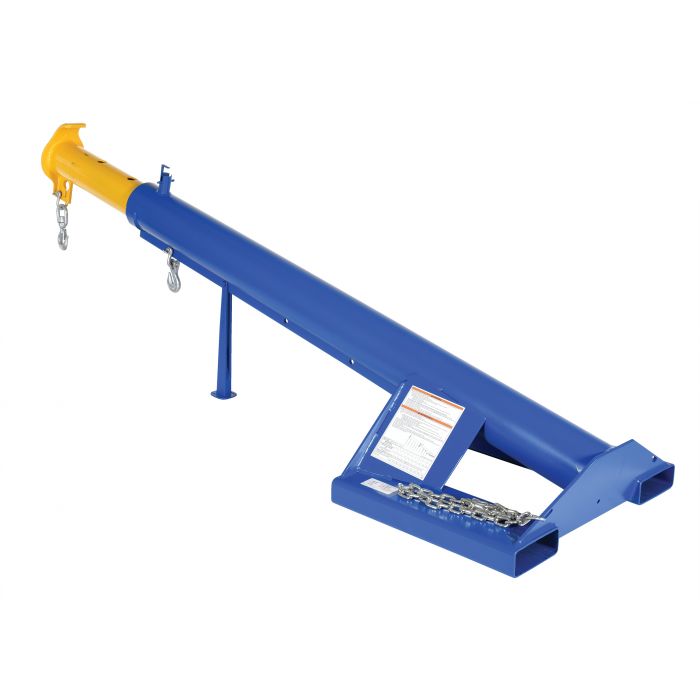

Lift Master Booms - Telescoping Fixed 15 Degrees - 4000 Lb Cap.
Status: Available
SKU:
LM-F15-4-24
$1,268.93
Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A 36" safety restraint secures the boom to the fork truck for safe operation.
- LM-F15-4-24
- CAPACITY: 4,000 LBS
- LOST LOAD: 385 LBS
- HEIGHT (RETRACTED): 33"
- HEIGHT (EXTENDED): 48 1/2"
- LENGTH (RETRACTED): 87"
- LENGTH (EXTENDED): 147"
- OVERALL WIDTH: 32"
- USABLE FORK POCKET: 2 1/2" X 7 1/2"
- FORK POCKET CENTERS: 24"
- MINIMUM HOOK POINT: 36"
- MAXIMUM HOOK POINT: 144"
- EFFECTIVE THICKNESS: LESS THAN 1"
- BOOM FIXED AT 15°
Write Your Own Review
Customer Reviews
-
David RWell built. Works great.
Posted on
Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A 36" safety restraint secures the boom to the fork truck for safe operation.
- LM-F15-4-24
- CAPACITY: 4,000 LBS
- LOST LOAD: 385 LBS
- HEIGHT (RETRACTED): 33"
- HEIGHT (EXTENDED): 48 1/2"
- LENGTH (RETRACTED): 87"
- LENGTH (EXTENDED): 147"
- OVERALL WIDTH: 32"
- USABLE FORK POCKET: 2 1/2" X 7 1/2"
- FORK POCKET CENTERS: 24"
- MINIMUM HOOK POINT: 36"
- MAXIMUM HOOK POINT: 144"
- EFFECTIVE THICKNESS: LESS THAN 1"
- BOOM FIXED AT 15°
| Additional Spec | Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers |
|---|---|
| Weight | 370.0 |
| Width (in.) | 32 |
| Length (in.) | 87 |
| Height (in.) | 33 |
| Uniform Capacity (lb.) | 4,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width/Height (in.) | 7-1/2 x 2-1/2 |
| Restraint Length (in.) | 36 |
| Boom Style | Telescoping |
| Minimum/Maximum Hook Point (in.) | 36/144 |
| Single-Hook Capacity at 36" (lb.) | 4000 |
| Single-Hook Capacity at 48" (lb.) | 3750 |
| Single-Hook Capacity at 60" (lb.) | 3500 |
| Single-Hook Capacity at 72" (lb.) | 3250 |
| Single-Hook Capacity at 84" (lb.) | 3000 |
| Single-Hook Capacity at 96" (lbs.) | 2750 |
| Single-Hook Capacity at 108" (lbs.) | 2500 |
| Single-Hook Capacity at 120" (lbs.) | 2250 |
| Single-Hook Capacity at 132" (lbs.) | 2000 |
| Single-Hook Capacity at 144" (lbs.) | 1750 |
| Overall Extended Height (in.) | 48-1/2 |
| Retracted Hook Height (in.) | 12-13/16 |
| Extended Hook Height (in.) | 28-11/32 |
| Overall Extended Length (in.) | 147 |
| Fixed Boom Degree | 15 |
| Boom Type | Fixed 15 Degrees |
| OSHA | 1910.178(a)(4) |
