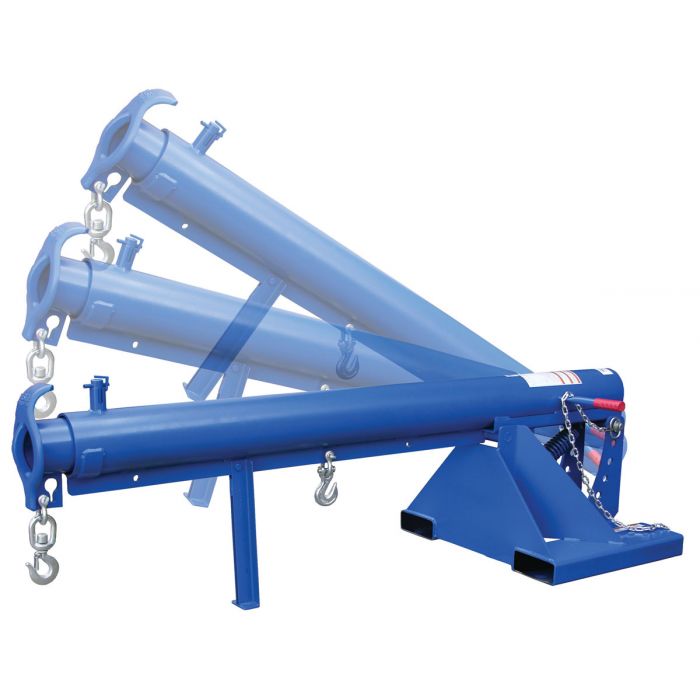

Lift Master Booms - Telescoping Orbit Boom - 8000 Lb Cap.
Status: Available
SKU:
LM-OBT-8-24
$3,726.93
- Overall Height - 28"
- Capacity - 8,000 lbs.
- Usable fork pockets are 7 1/4"W x 2 1/4"H
- Net Weight - 734 lbs.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
Write Your Own Review
Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).
- Overall Height - 28"
- Capacity - 8,000 lbs.
- Usable fork pockets are 7 1/4"W x 2 1/4"H
- Net Weight - 734 lbs.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
| Additional Spec | Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers |
|---|---|
| Weight | 622.0 |
| Width (in.) | 32 |
| Length (in.) | 85.25 |
| Height (in.) | 28.875 |
| Uniform Capacity (lb.) | 8,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/4 x 2-1/4 |
| Restraint Length (in.) | 36 |
| Boom Style | Telescoping |
| Minimum/Maximum Hook Point (in.) | 36/144 |
| Single-Hook Capacity at 36" (lb.) | 8000 |
| Single-Hook Capacity at 48" (lb.) | 6650 |
| Single-Hook Capacity at 60" (lb.) | 6000 |
| Single-Hook Capacity at 72" (lb.) | 5300 |
| Single-Hook Capacity at 84" (lb.) | 4650 |
| Single-Hook Capacity at 96" (lbs.) | 4000 |
| Single-Hook Capacity at 108" (lbs.) | 3500 |
| Single-Hook Capacity at 120" (lbs.) | 3000 |
| Single-Hook Capacity at 132" (lbs.) | 2600 |
| Single-Hook Capacity at 144" (lbs.) | 2200 |
| Overall Extended Height (in.) | 96-1/8 |
| Retracted Hook Height (in.) | 5-1/8 |
| Extended Hook Height (in.) | 76-9/16 |
| Overall Extended Length (in.) | 148-1/2 |
| Max Rotation Degree | 37 |
| Boom Type | Orbit Boom |
| OSHA | 1910.178(a)(4) |
