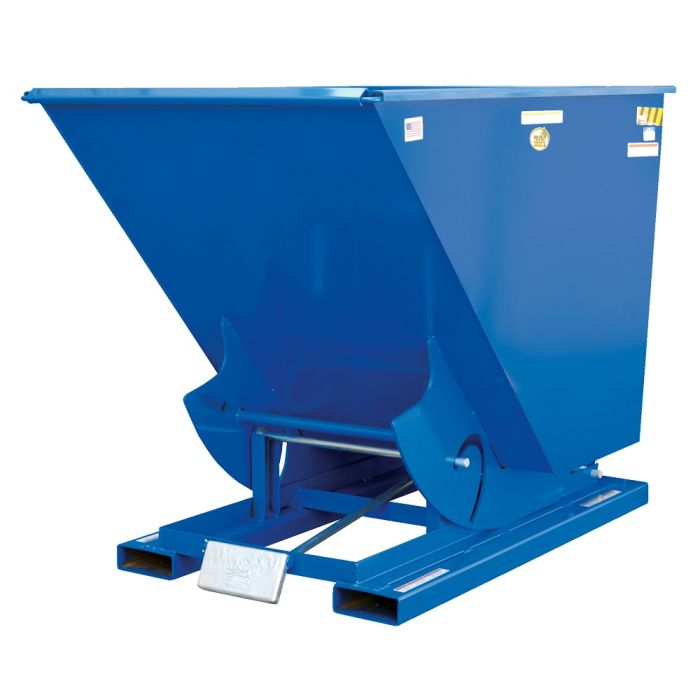

Vestil SELF-DUMP HOPPER MD 2 CU YD 4K BLUE
Volume Cubic Yards 2
Usable Chute Size (W x D x H) 53" x 63 3/4" x 41 1/2"
Overall Size (W x D x H) 56 1/4" x 61" x 52 3/8"
Capacity: 4,000 lbs.
Base fork pockets 3/16" thick
Fork Pocket Centers 28"
Usable fork pockets 7-1/2"W x 2-1/2"H
Net Wt. 655 lbs
This Self Steel Dumping Hopper automatically dumps when bumper release contacts side of dumpster. The Self Dumping Steel Hopper with Bumper Release, returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A locking chain is provided to secure the hopper to the fork truck. Constructed with durable, consistent robotic welds. Powder coat blue finish.
Volume Cubic Yards 2
Usable Chute Size (W x D x H) 53" x 63 3/4" x 41 1/2"
Overall Size (W x D x H)
Capacity: 4,000 lbs.
Base fork pockets 3/16" thick
Fork Pocket Centers 28"
Usable fork pockets 7-1/2"W x 2-1/2"H
Net Wt. 655 lbs
Quick Shipping
| Additional Spec | Fork Pocket Centers 28", Usable fork pockets 7-1/2"W x 2-1/2"H, Base fork pockets 3/16" thick |
|---|---|
| Weight | 698.0 |
| Width (in.) | 56.625 |
| Length (in.) | 68.3125 |
| Height (in.) | 51.8125 |
| Uniform Capacity (lb.) | 4,000 |
| Steel (gauge) | 10 |
| Volume (cu. yd.) | 2 |
| Fork Pocket Center (in.) | 28 |
| Usable Fork Pocket Width (in.) | 7-1/2 |
| Usable Fork Pocket Height (in.) | 2-1/2 |
| Cable Length (in.) | 48 |
| OSHA | 29 CFR 1910.178(m)(5)(iii) |
