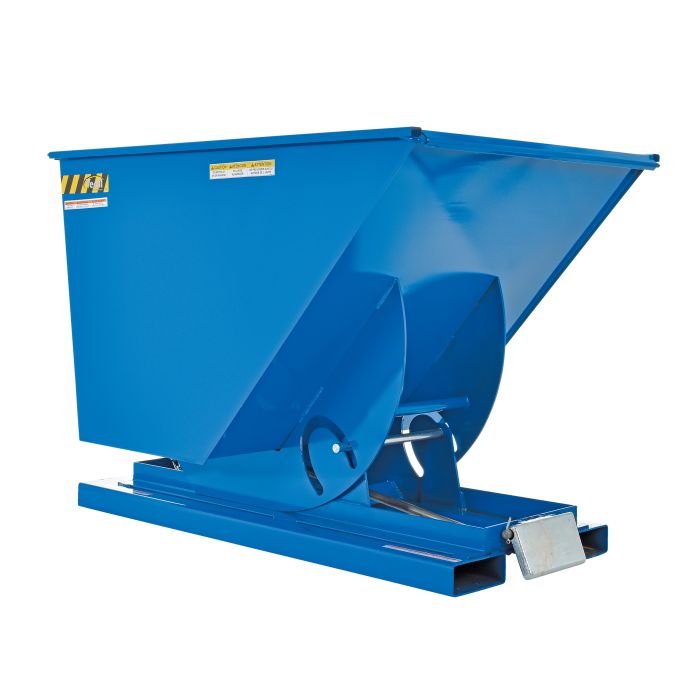

Vestil SELF-DUMP HOPPER MD 1 CU YD 4K BLUE
Base fork pockets 3/16" thick
Volume Cubic Yards 1
Usable Chute Size ( W x D x H) 38" x 54 1/4" x 32 1/2"
Capacity 4,000 lbs
Overall Size (W x D x H) 41 1/4" x 61" x 42 5/8"
Usable fork pockets 7-1/2"W x 2-1/2"H
Fork Pocket Centers 18"
Net Wt. 553 lbs
This Self Steel Dumping Hopper automatically dumps when bumper release contacts side of dumpster. The Self Dumping Steel Hopper with Bumper Release, returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A locking chain is provided to secure the hopper to the fork truck. Constructed with durable, consistent robotic welds. D-100 is stackable if you stack the top hopper turned 90° from the bottom. Powder coat blue finish.
Base fork pockets 3/16" thick
Volume Cubic Yards 1
Usable Chute Size ( W x D x H) 38" x 54 1/4" x 32 1/2"
Capacity 4,000 lbs
Overall Size (W x D x H) 41 1/4" x 61" x 42 5/8"
Usable fork pockets 7-1/2"W x 2-1/2"H
Fork Pocket Centers 18"
Net Wt. 553 lbs
Quick Ship
| Additional Spec | Fork Pocket Centers 18", Usable fork pockets 7-1/2"W x 2-1/2"H, Base fork pockets 3/16" thick |
|---|---|
| Weight | 525.0 |
| Width (in.) | 41.5 |
| Length (in.) | 61.125 |
| Height (in.) | 42.6875 |
| Uniform Capacity (lb.) | 4000 |
| Steel (gauge) | 10 |
| Volume (cu. yd.) | 1 |
| Fork Pocket Center (in.) | 18 |
| Usable Fork Pocket Width (in.) | 7-1/2 |
| Usable Fork Pocket Height (in.) | 2-1/2 |
| Cable Length (in.) | 48 |
| OSHA | 29 CFR 1910.178(m)(5)(iii) |
