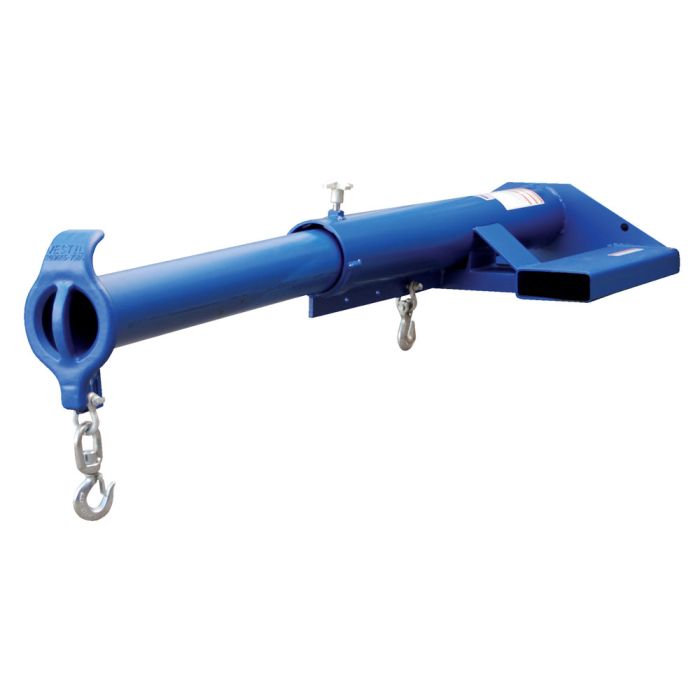

Shorty Lift Master Booms - Telescoping - 8000 Lb Cap.
Status: Available
SKU:
LMS-EBT-46-8
$2,157.92
Description Telescoping
Overall Height 12"
Overall Length 52 1/2" to 93"
Uniform Capacity 8,000
Net Wt. (lbs) 432
Write Your Own Review
The Shorty Lift Master Boom is ideal for tight areas. Choose either telescoping or non-telescoping design. Includes built-in fork pockets and safety restraint. Steel construction with powder-coat blue finish.
Description Telescoping
Overall Height 12"
Overall Length 52 1/2" to 93"
Uniform Capacity 8,000
Net Wt. (lbs) 432
| Weight | 432.0 |
|---|---|
| Width (in.) | 32 |
| Length (in.) | 53.875 |
| Height (in.) | 15 |
| Uniform Capacity (lb.) | 8,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/4 x 2-1/4 |
| Restraint Length (in.) | 36 |
| Boom Style | Telescoping |
| Minimum/Maximum Hook Point (in.) | 31 / 89 |
| Single-Hook Capacity at 31" (lb.) | 8000 |
| Single-Hook Capacity at 37" (lb.) | 7600 |
| Single-Hook Capacity at 43" (lb.) | 7200 |
| Single-Hook Capacity at 52" (lb.) | 6610 |
| Single-Hook Capacity at 64" (lb.) | 5825 |
| Single-Hook Capacity at 76-1/2" (lbs.) | 5010 |
| Single-Hook Capacity at 89" (lbs.) | 4200 |
| Extended Length (in.) | 90-7/8 |
| OSHA | 1910.178(a)(4) |
